Sanwu Lasers Tracer Laser Power Meter 1mW–20W App Wireless Bluetooth

Sanwu Lasers Tracer Laser Power Meter 1mW–20W App Wireless Bluetooth

$280.00
In stock

Reliable Shipping
When will I get my order?
  • Items will be shipped within 3 working days after cleared payments;
  • We will selectively ship from the nearest warehouse based on your shipping address and overseas warehouse inventory.

Estimated Delivery Time:

  1. Ship From US Warehouse : 2~8 Business days ;
  2. Ship From AU or CA Warehouse : 5~9 Business days ;
  3. Ship From UK or EU Warehouse : 3~9 Business days ;
  4. CN Standard International Shipping : 7~20 Business days ;
  5. Express FedEx or DHL To WorldWide : 3~7 Business days.

DESCRIPTION

Laser Power Meter Function

  • It can be connected to the probe through a mobile app or computer Bluetooth to display power data. It supports digital and curve graphic display, long-term test power curve accumulation display, and can also be connected to a touch screen hardware display meter.

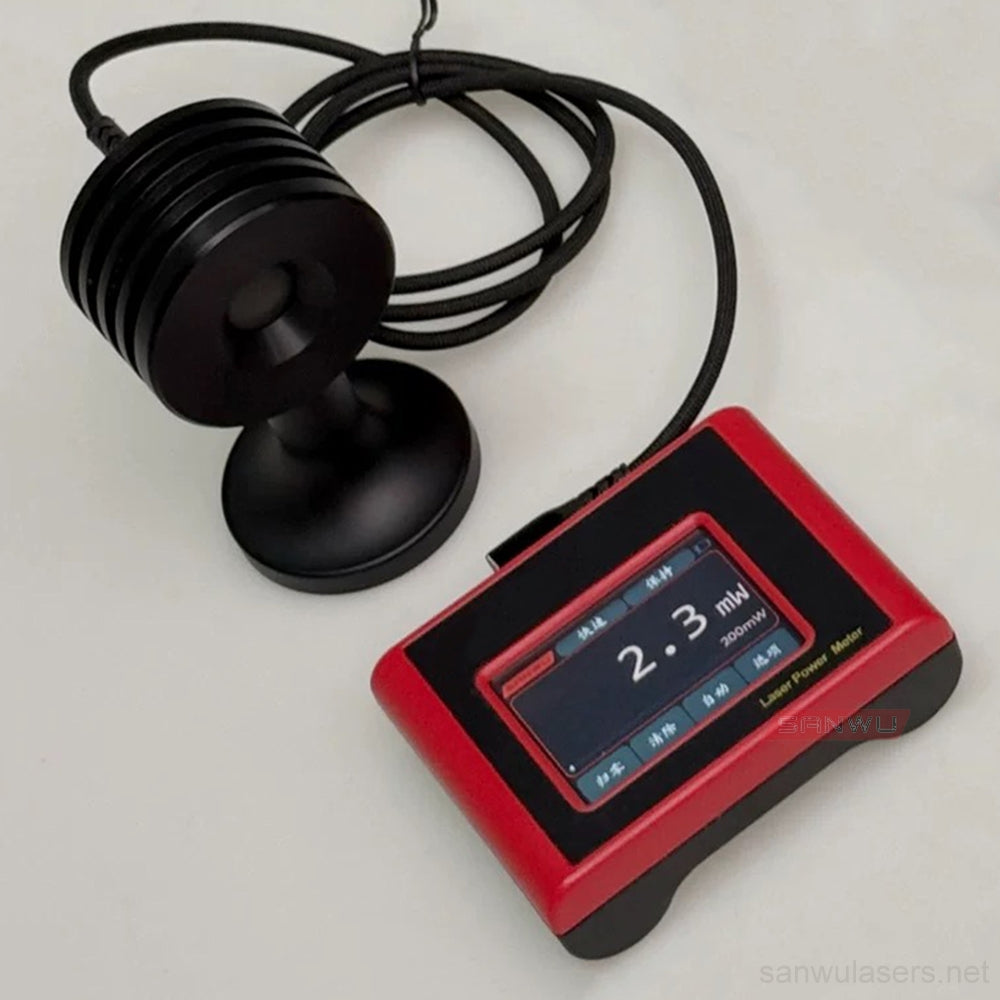

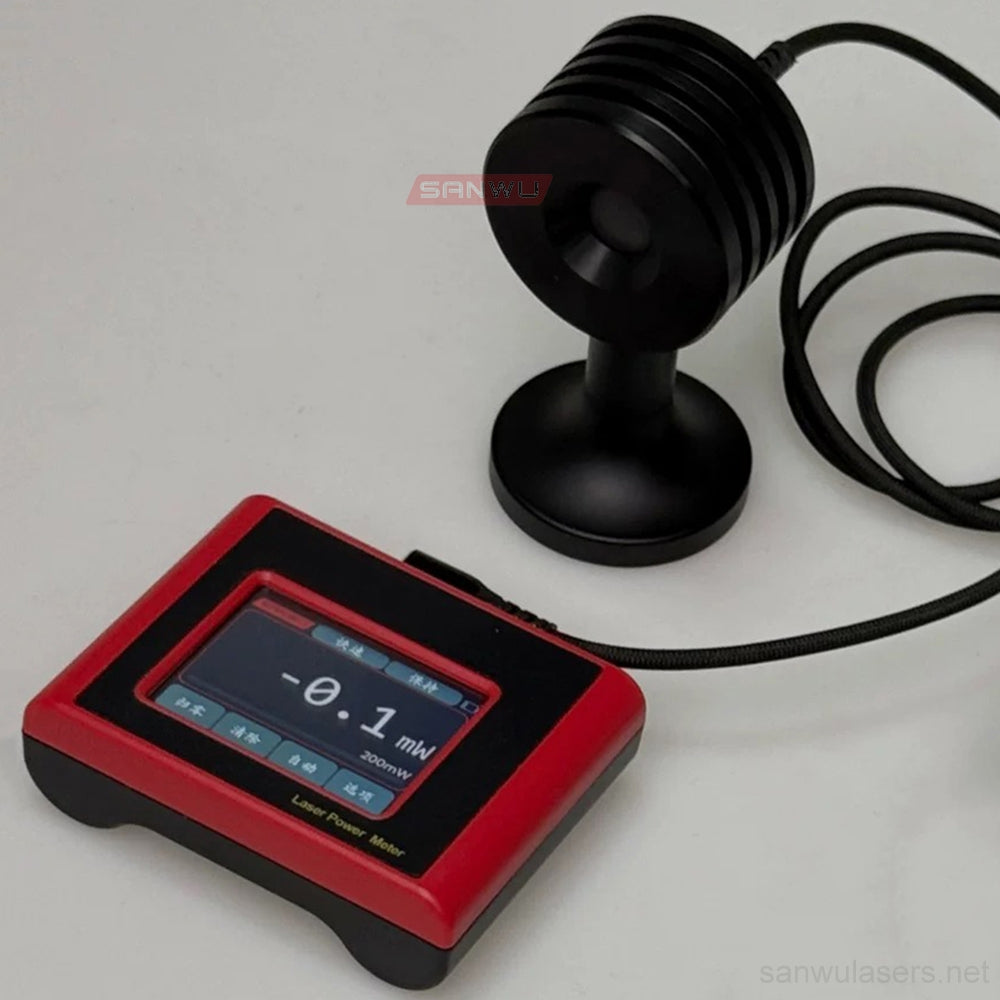

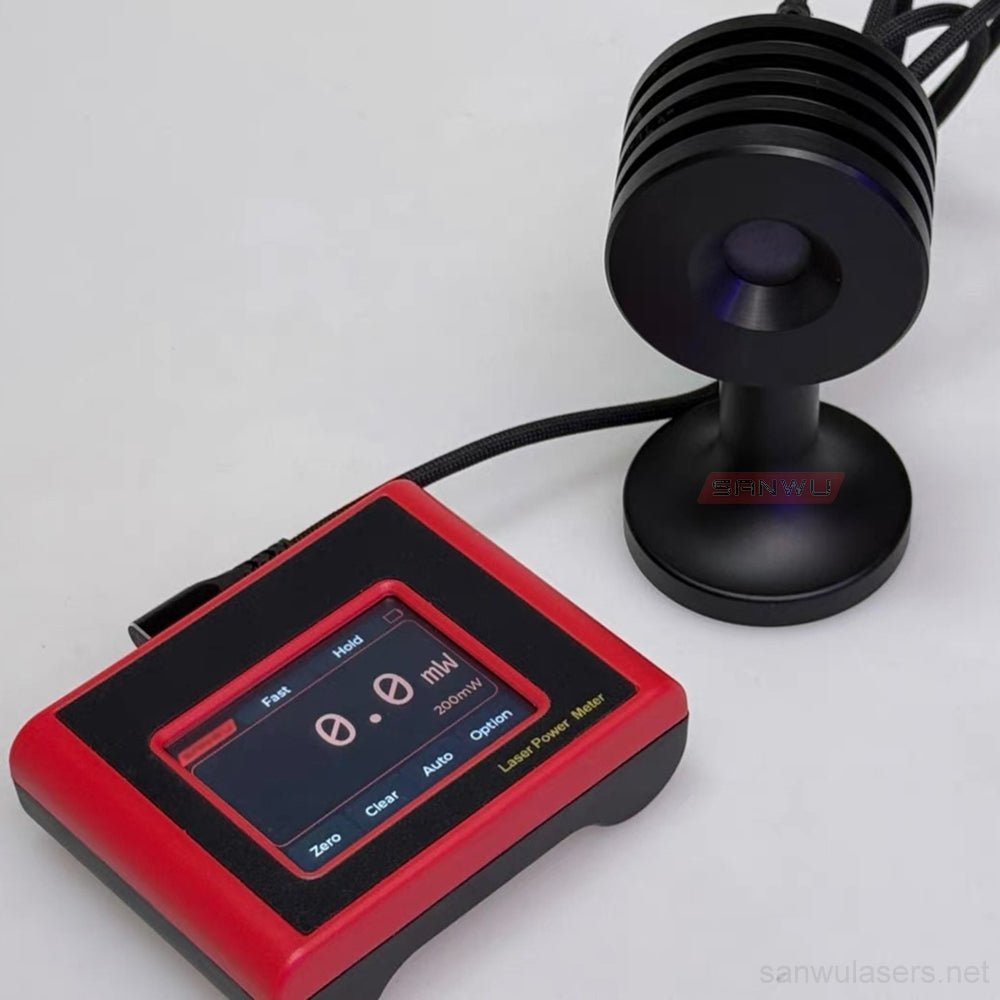

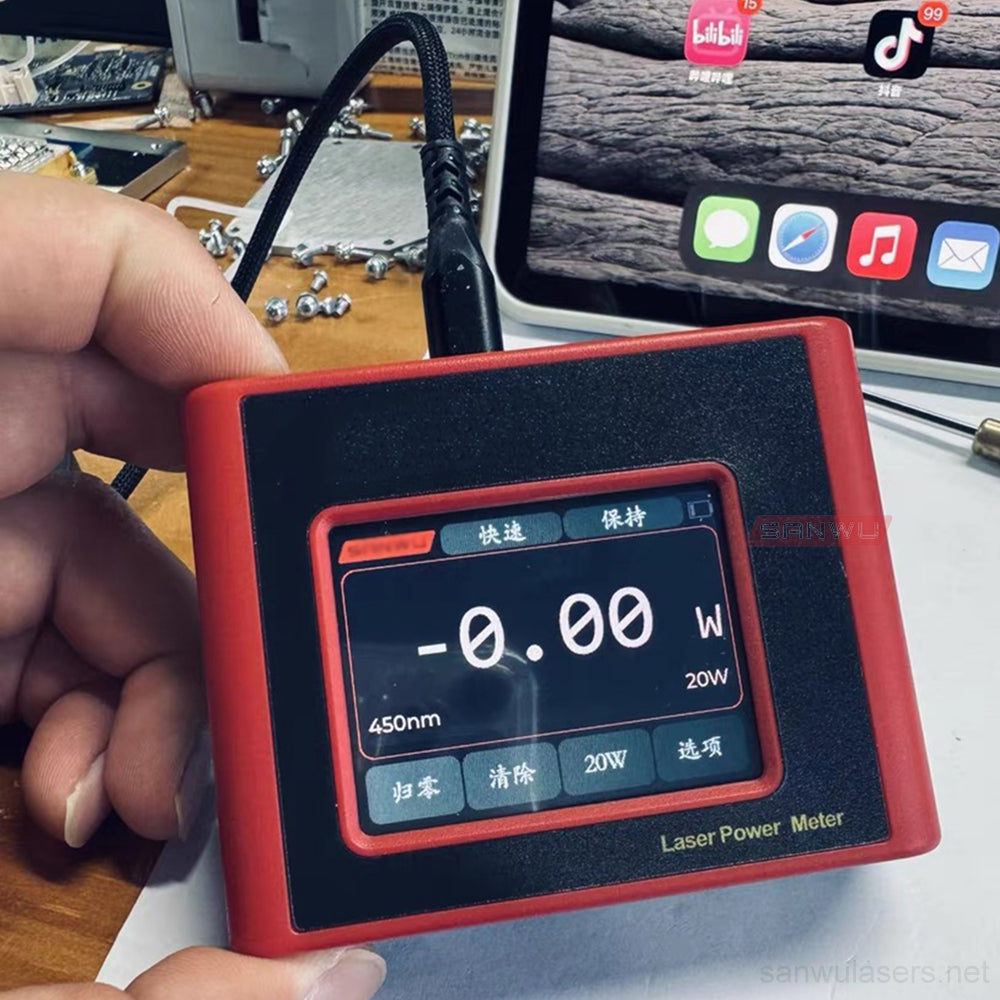

  • The hardware display meter has a lithium battery that can be directly charged, and can be connected to the probe to supply power and display power data.

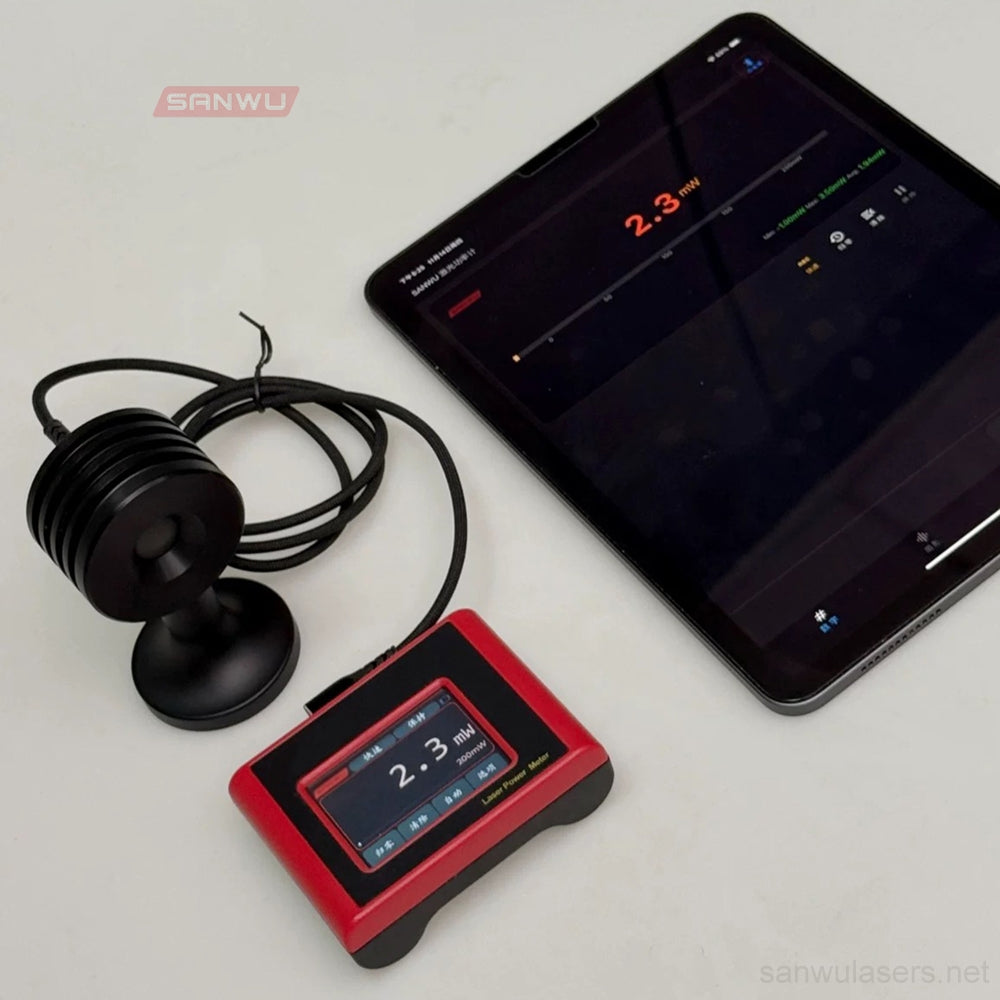

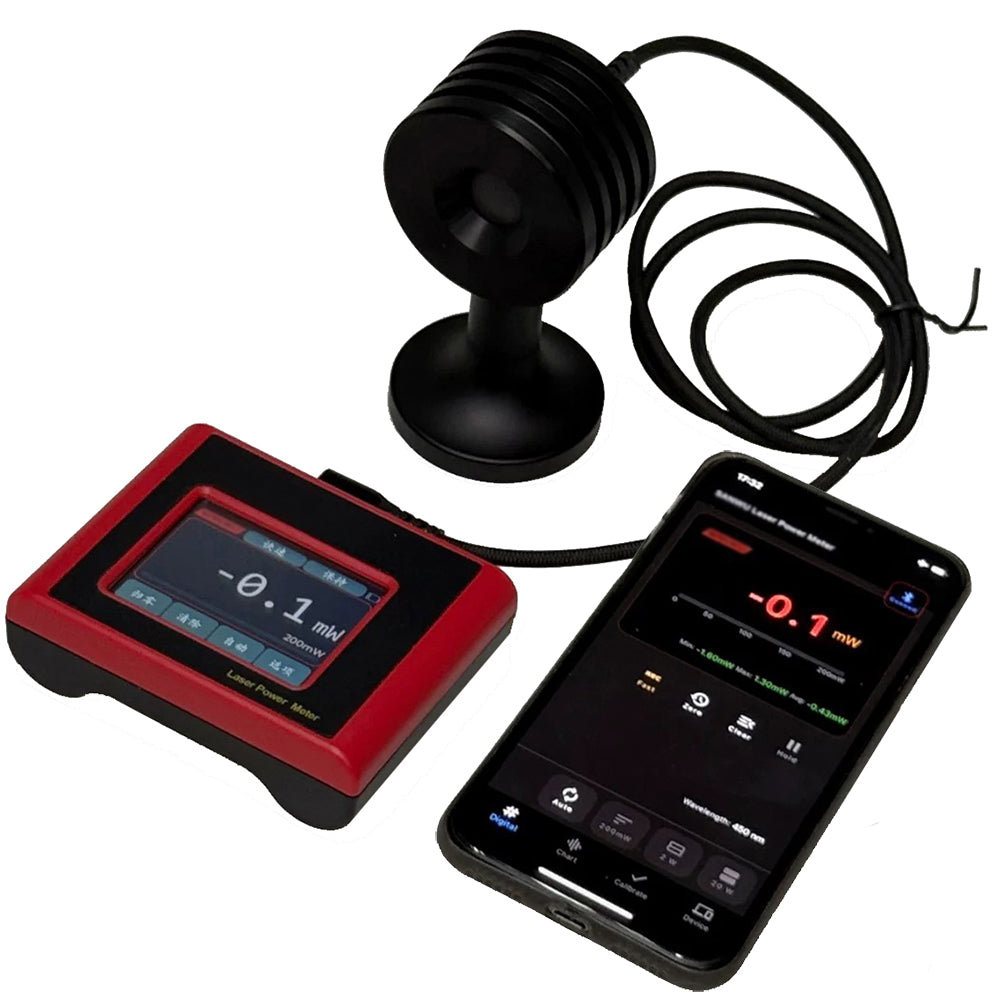

  • The mobile app can display power data synchronously with the hardware display meter. The probe with Bluetooth can work independently and display power data on the phone.

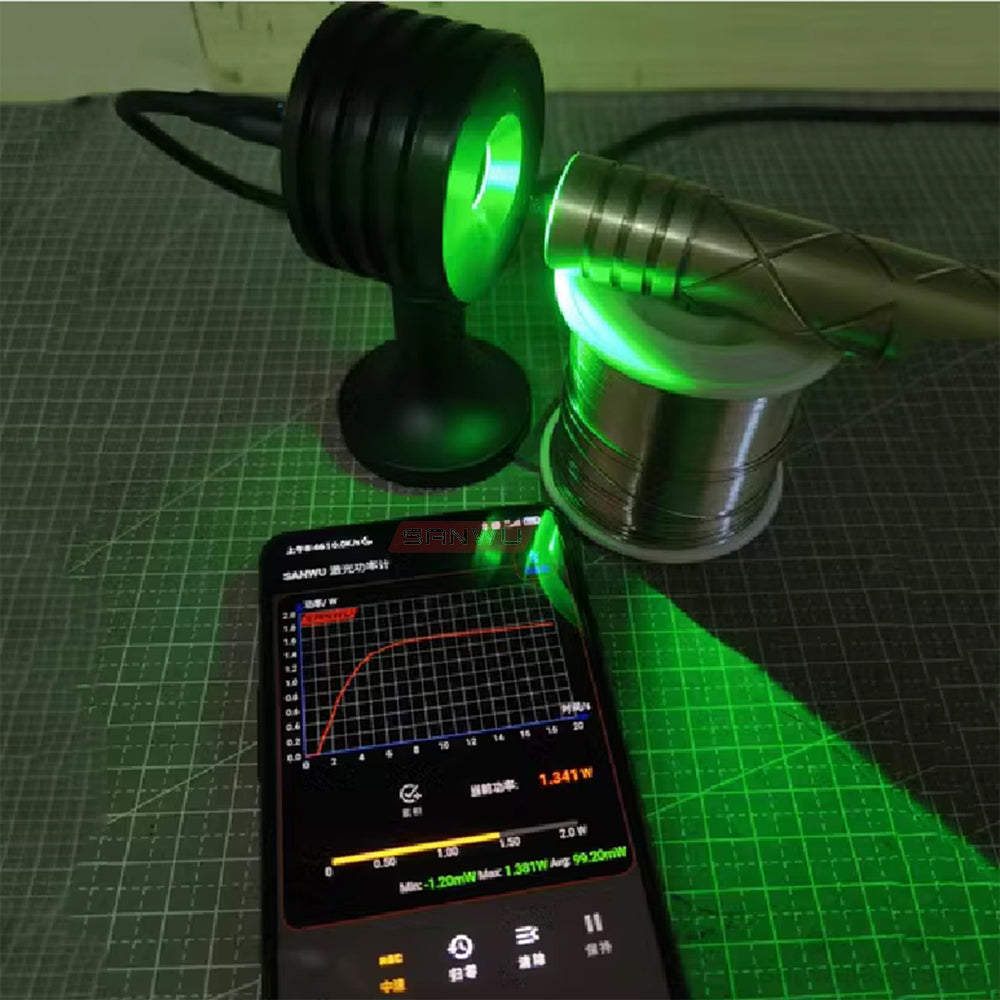

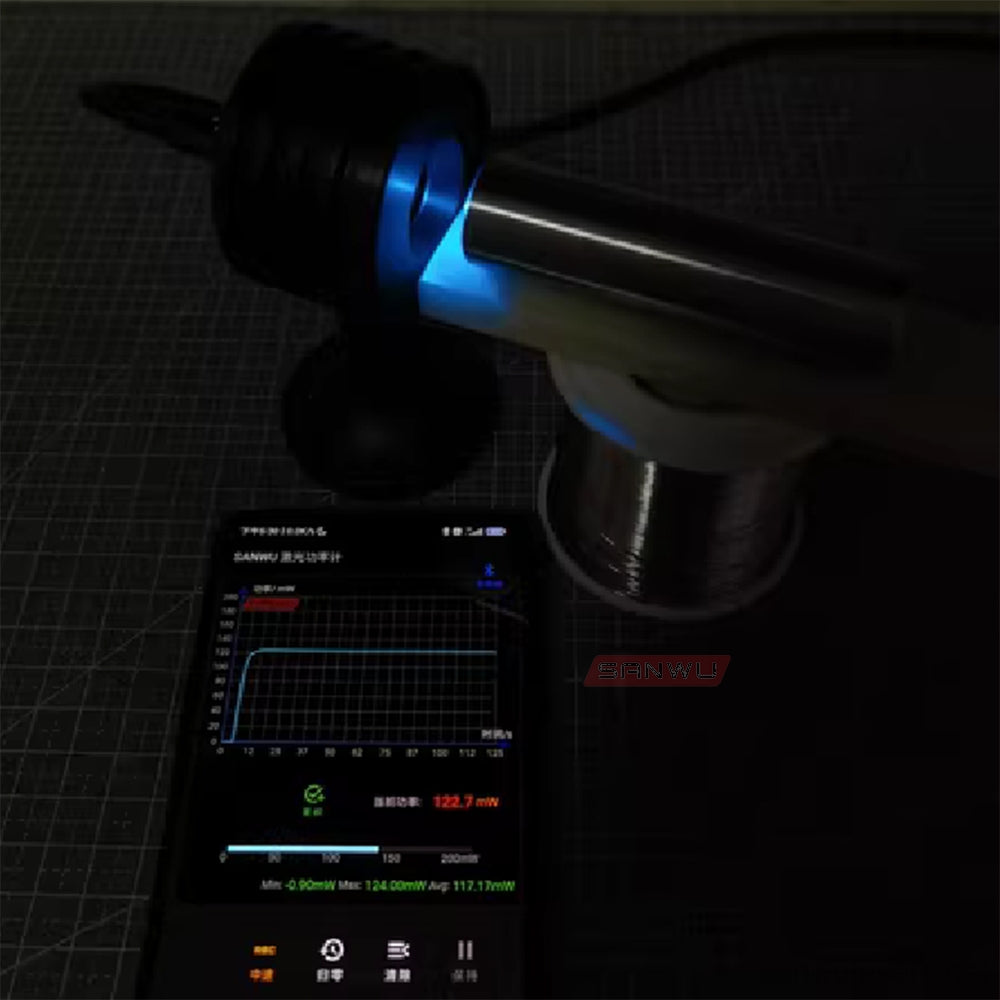

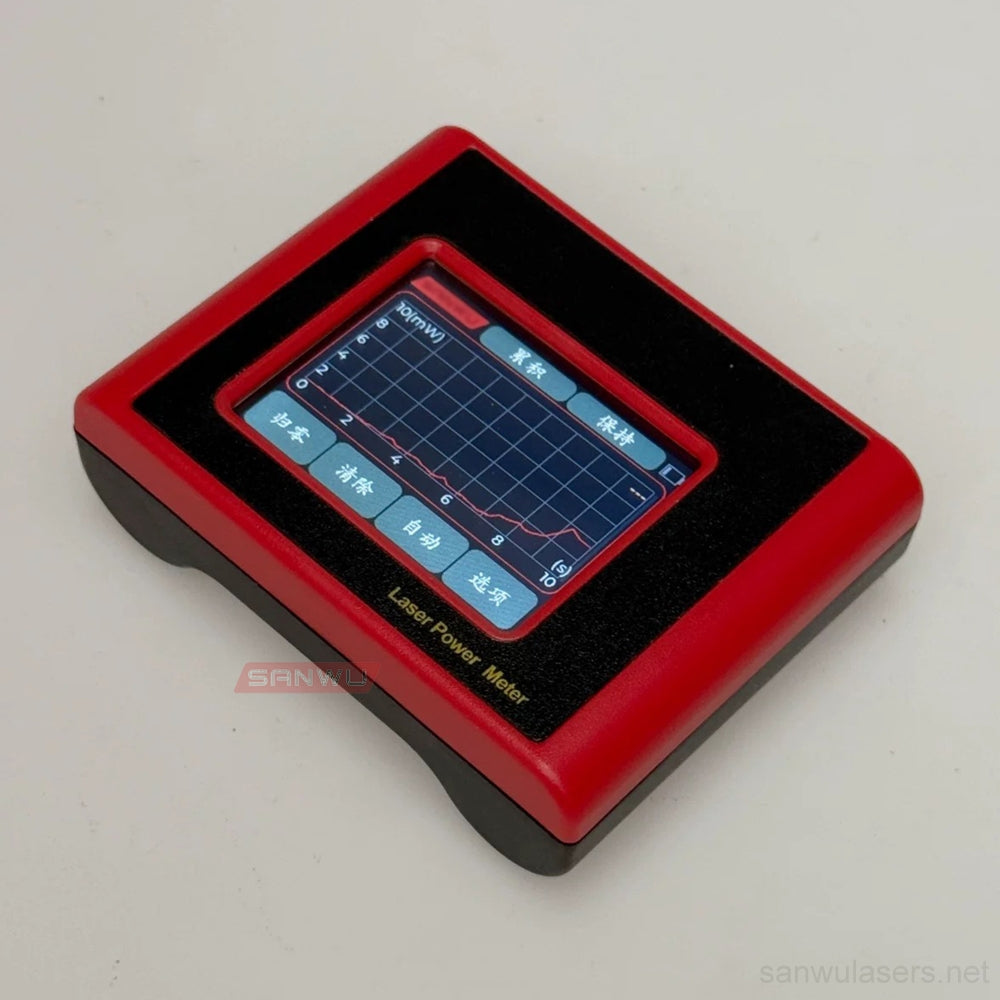

  • Standard source multi-point correction nonlinear fitting, high accuracy, fast response speed, good heat dissipation, can measure high power for a long time. The app has a measurement power curve accumulation function, which can display the power curve measured for a long time.
  • External electronic hardware display meter (Requires additional purchase).
  • Test Laser Power – Measurable range 1mW – 10W, 20W.
  • Portable Size – This laser power meter can measure any laser.
  • Industry Standard

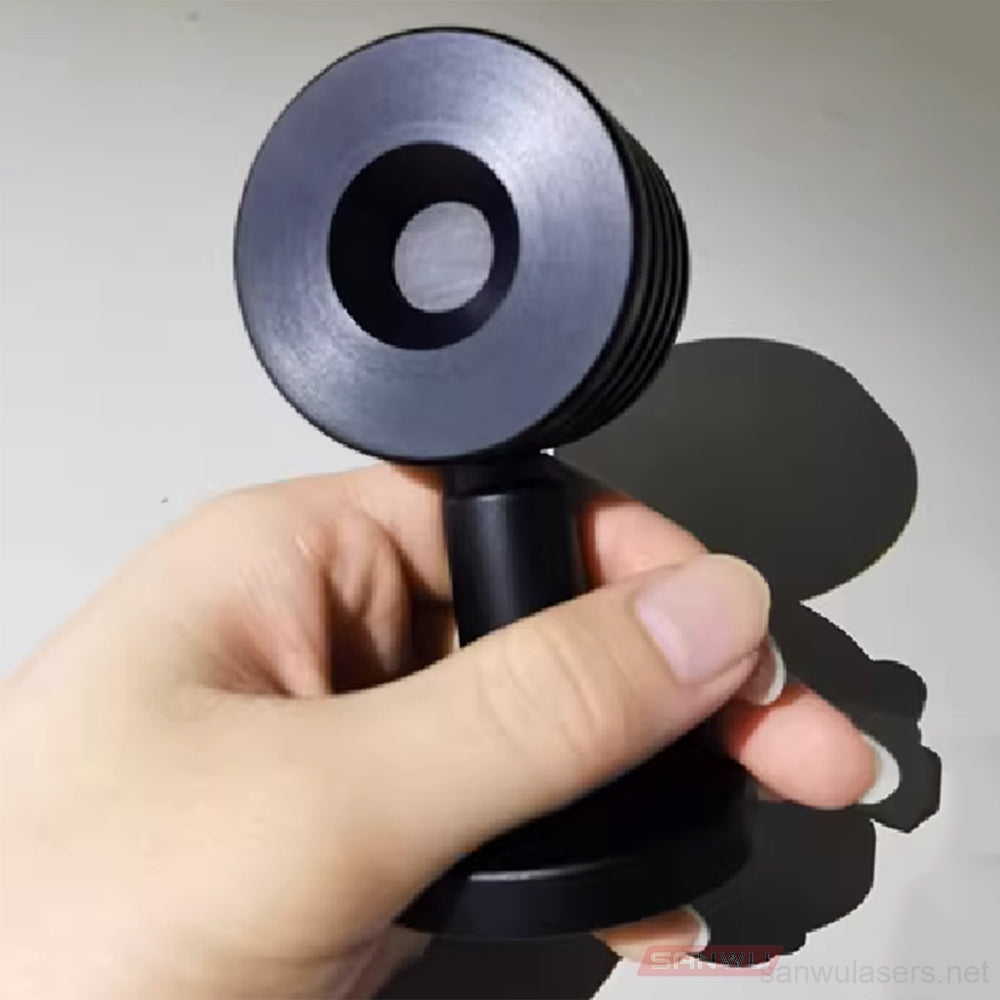

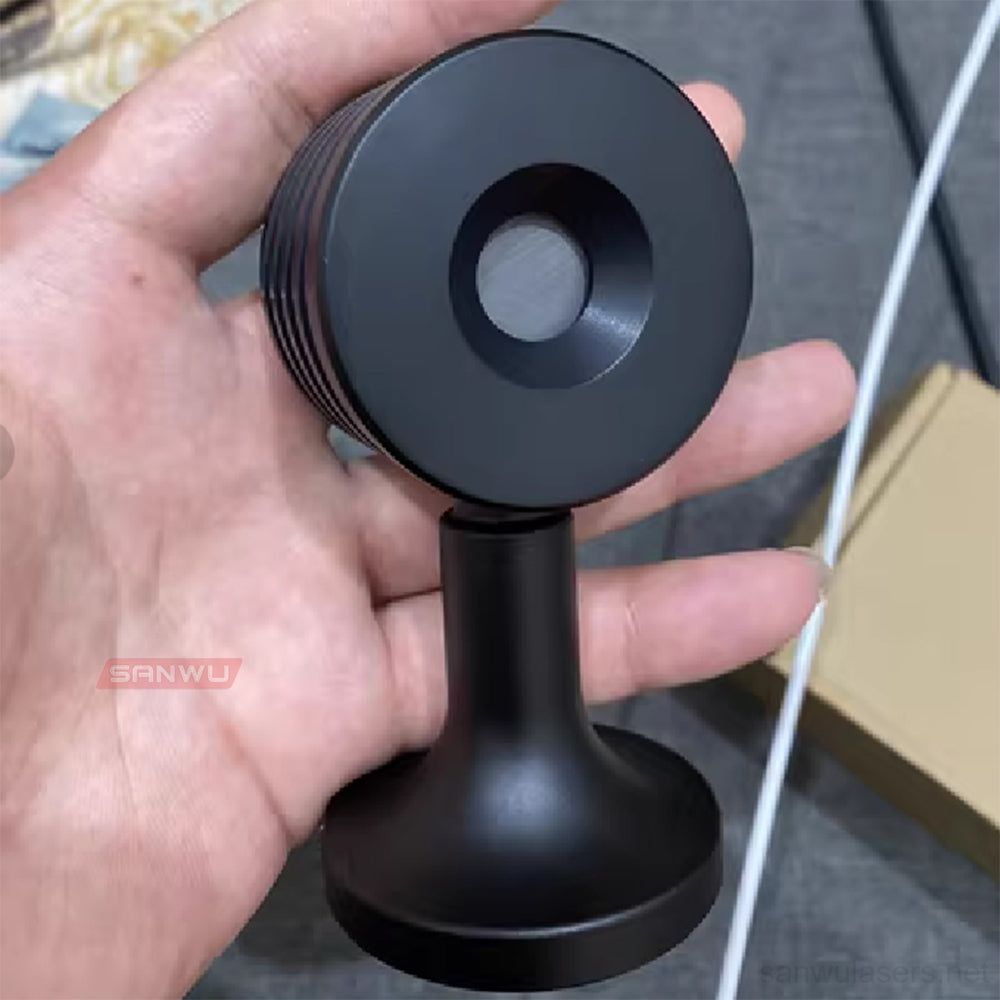

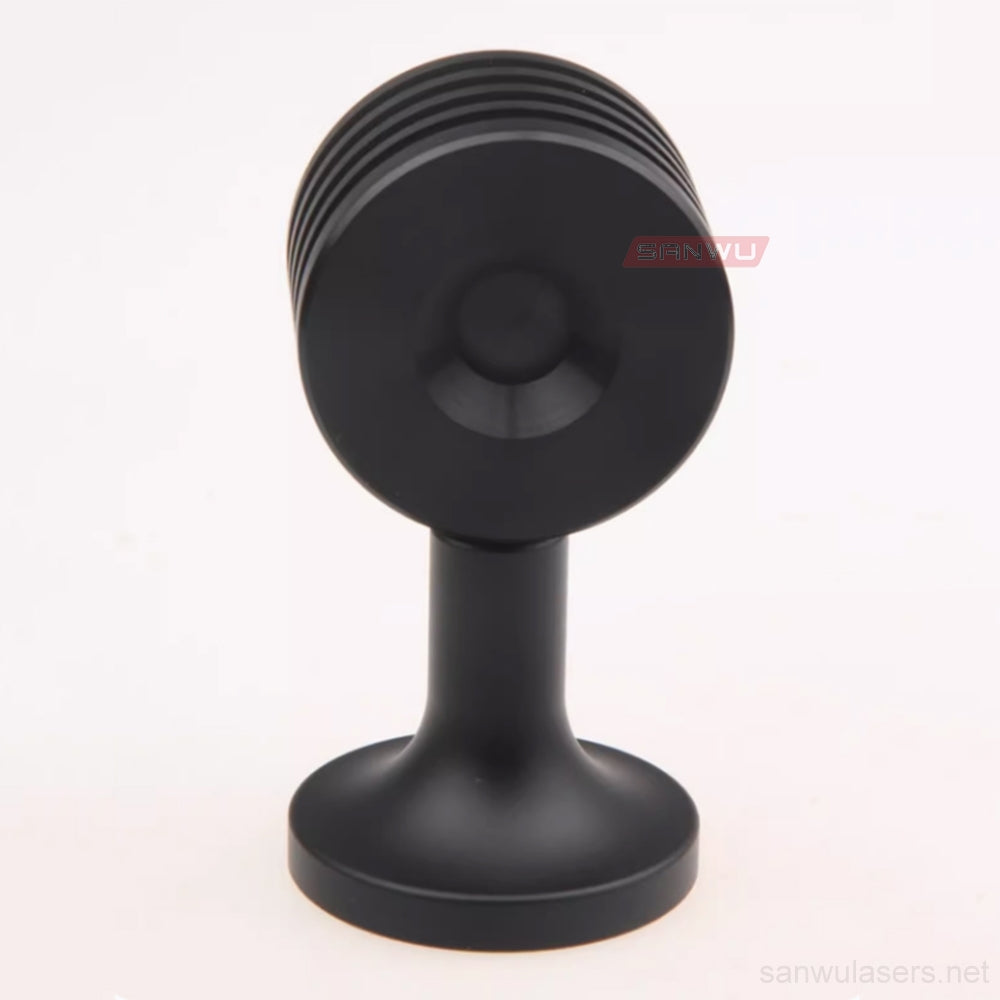

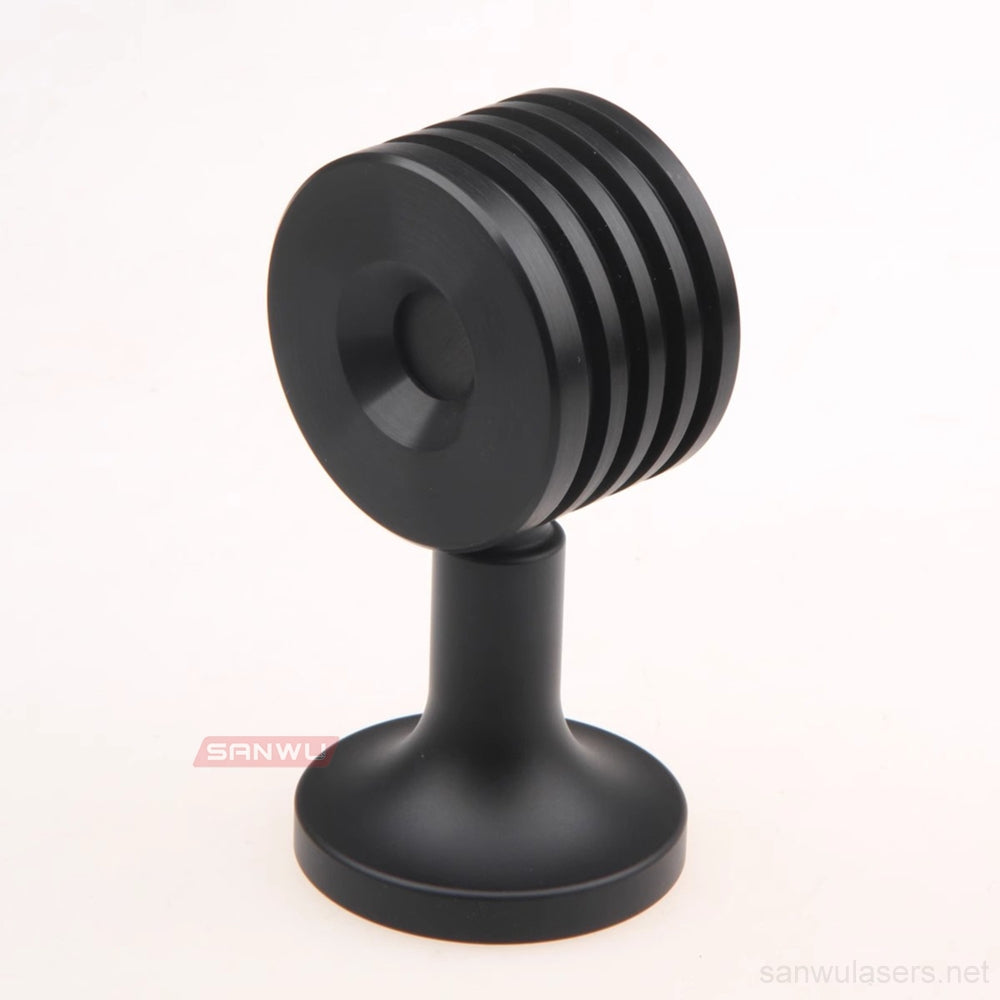

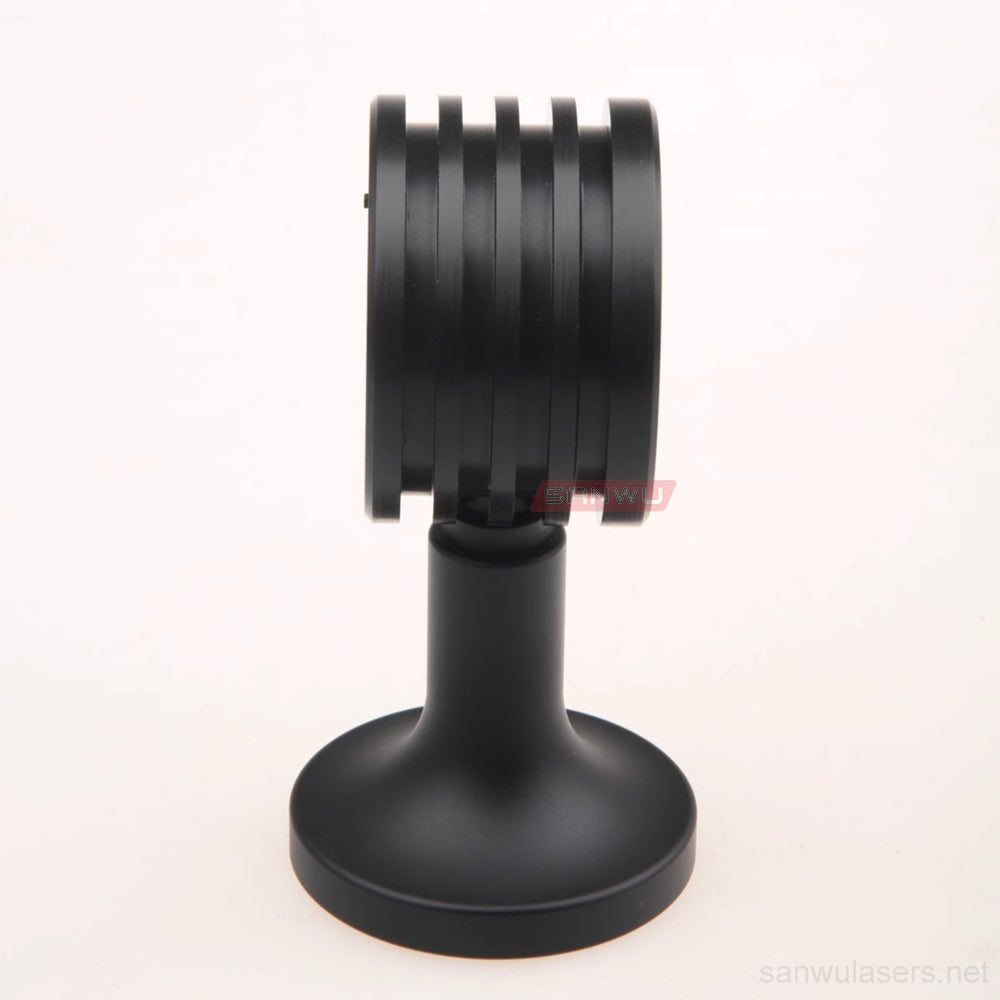

    We entirely designed and developed this 20-watt laser power meter giving it a high-quality, efficient design. The Tracer is the most high-end portable laser power meter around! It's constructed with a round shaped heatsink and sensor. Each unit is calibrated to the industry standard ensuring supreme accuracy!
  • New Features - Bluetooth Function
    You can now connect your mobile Phone(Apply IOS & Android, Computer Windows 10/11) to the sensor to view the realtime output readings via bluetooth, more new functions will be coming soon!
  • Reading speed
    For a fast output reading, select "Fast" under the RBC tab and for a more accurate reading, select "Slow" on the same tab.
  • Wavelength selectable
  1. Our newest model has enhanced the accuracy of each wavelength which the wavelength(400nm - 1064nm) is selectable on the wavelength menu.
  2. The probe is a critical and sensitive device, and the surface coating should not be touched or maliciously damaged, otherwise it will seriously affect the accuracy of testing laser power. If there is dust, it can be gently wiped with a dry cotton swab.

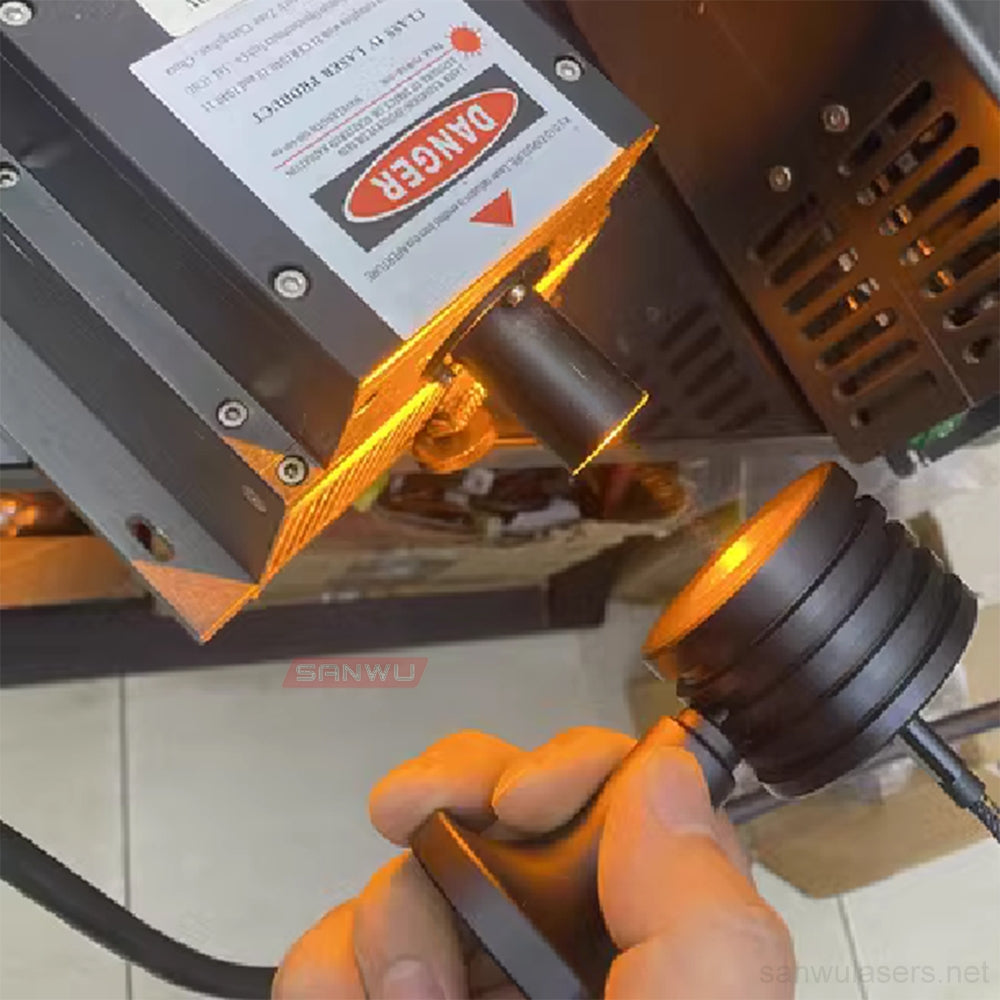

  3. When measuring, the laser can't focus on the incident detection port, which can cause irreversible permanent damage to the probe. Parallel light can be used for measurement.
Model： SW-LPM-10T
SW-LPM-20T
Brand： Sanwu Lasers
Measuring Range of Spectrum： 300nm-1200nm
Measuring Range： LPM-10T: 0-100000mw(10W)
LPM-20T: 0-200000mw(20W)
4 Models:： LPM-10T: Automatic/100mW/1W/10W
LPM-20T: Automatic/200mW/2W/20W
Valid Range of Probe Port： φ13mm
Response Time： 1-3 Seconds
Measuring Aсcuraсy： Within ±2%
Resolution： 1mW

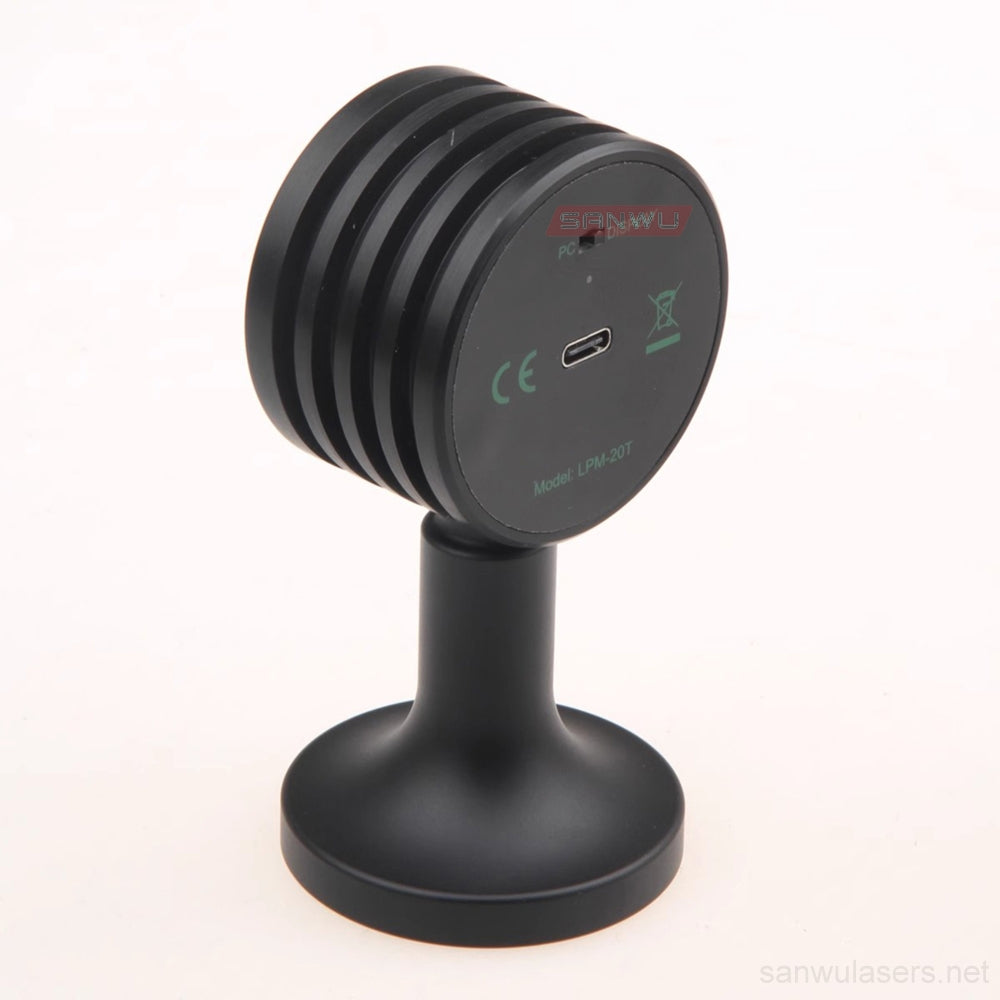

Power Supply： Type C 5V DC, A Power Supply Needs To Be Connected When In Use!!!
It Can Also Be Connected To The Hardware Display Meter And Powered By The Display Meter.
Connection： Bluetooth
Display： Mobile App, Supports Apple IOS and Android, Computer Windows 10/11
Net Weight： 600g
Warranty： 1 Year Manufacturer's Warranty
 PACKING LIST
SW-LPM-10T/20T SW-LPM-10T/20T&Display Meter
1 * Laser Power Meter Head
1 * Aluminum Head Stand (Black)
1 * USB Data Cable
1 * USB Power Cable
1 * Laser Power Meter Head
1 * Aluminum Head Stand (Black)
1 * USB Data Cable
1 * USB Power Cable
1 * Hardware Display Meter

The Mobile App (IOS & Android) can be downloaded here:
IOS (Apple Appstore):
https://apps.apple.com/us/app/sanwu-laser-power-meter/id6472035763

Android:
http://www.sanwuelec.com/softwaredownload/sanwulasermeter.htm
